BT110 setup and Deployment -
Setup Completion Validation Testing
Setting up and Deploying BT110 in a Home or an Office Environment

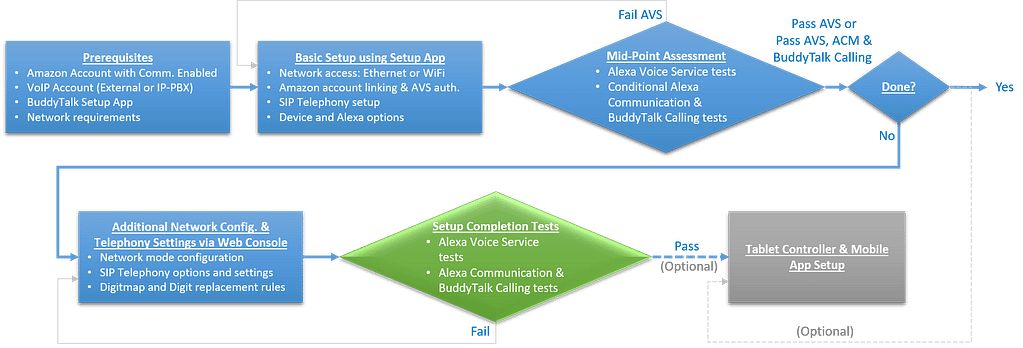

At this point, you should have completed all the setup steps including Prerequisites, Basic Network Access, Amazon Account linking, and SIP Parameter Setup, Mid-Point Alexa Voice Service Tests, Network Configuration and SIP Account Setup via Web Console, and are ready to conduct the final Setup Completion Validation Tests.
Setup Completion Validation Tests
Before proceeding to the Setup Completion Validation tests, please confirm visually that both the Ring LED and the Phone LED are off. This is an indication that the BuddyTalk device has successfully completed the AVS authentication/registration, the Amazon Communication authentication/registration, and the SIP Telephony registration.
Please check the network connection and AVS Client authorization if the Ring LED continues to be rotating green, and check the following if the Phone LED remains to be red:
- Communication is enabled in the Alexa App,
- The SIP Settings have been properly entered for SIP registration.
Upon completing the BT110 setup procedures, you may perform the following tests to confirm that the BT110 device has been set up correctly to provide Alexa Voice Service, Alexa Communication, and BuddyTalk Calling services.
Alexa Voice Service Tests
| Description | User Questions/Commands and Expected Alexa Responses |
|---|---|
|
Basic Question |
User: "Alexa, what time is it?" |
|
Alexa: "It is 8:40 am" |
|
|
Set a Reminder |
User: “Alexa, set a reminder.” |
|
Alexa: “What’s the reminder for?” |
|
|
User: “To go to the airport” |
|
|
Alexa: “When should I remind you?”
|
|
|
User: “Tomorrow at 10 am.” |
|
|
Alexa: “OK. I will remind you tomorrow at 10 am.” |
|
- Alexa Communication and BuddyTalk Calling Tests
Alexa Communication and BuddyTalk Calling Tests
| Description | User Questions/Commands and Expected Alexa Responses |
|---|---|
|
Basic Call: Digit Dialing |
User: "Alexa, dial 1-408-432-5400." |
|
Alexa: "1-408-432-5400" and call completes |
|
|
Basic Call: Contact Dialing |
User: "Alexa, call John Smith." |
|
Alexa: "Calling John Smith" and call completes |
|
